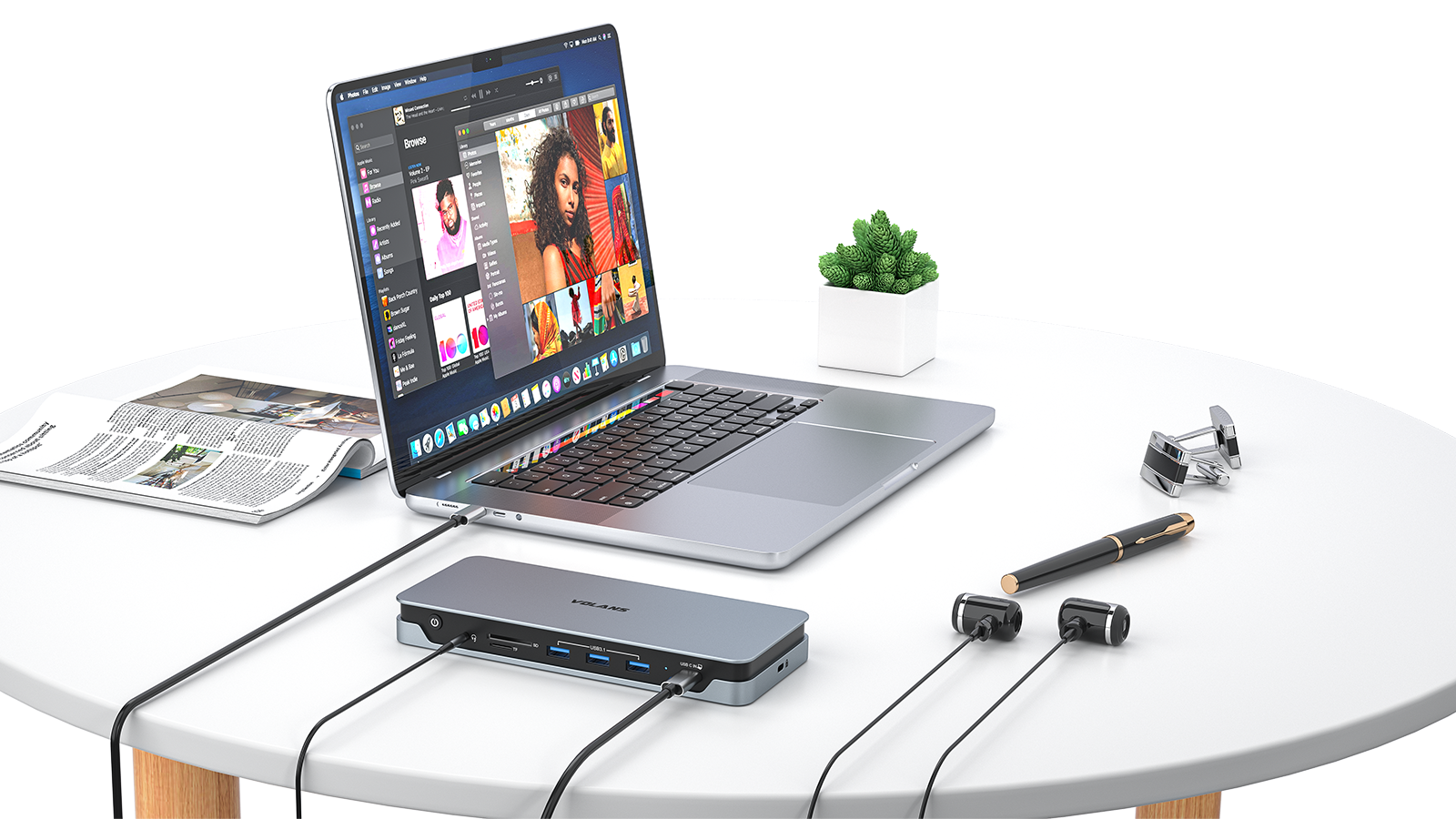

VOLANS VL-UCDLMD Aluminum 14-in-1 Quadruple 4K Display Multifunctional USB-C Docking Station

  • 2 x 4K@60Hz DisplayPort , 2 x 4K@60Hz HDMI, 3 x USB-A 3.1 Gen2 (10G) , 1 x USB-C PD 100W. 1 x 3.5mm Combo Jack, 1 x Gigabit Ethernet Port,1 x SD Card Reader (SD 4.0), 1 x Micro SD Card Reader (SD 4.0)
  • Compatible with MAC M1/M2 Chipset
  • Up to 100W power to laptop
  • Engineered for compatibility across all Windows, MacOS and ChromeOS laptops.
SKU: VL-UCDLMD Category:

Feature

1. Power Switch, press the ON/OFF button for 3 seconds to start/shut down

2. 3.5mm Audio & Microphone (Only support US standard)

3. SD 2.0 & Micro SD Card Reader (Data transfer rates are subject to the speed of the memory card itself and your computer’s USB ports. SD and Micro SD can’t read at the same time.)

4. 3×USB3.1 Gen 2 support 10Gbps transfer rate,5V1.5A

5. LED indicator

6. USB-C host input

7. Kinsington lock slot

8. RJ45 Gigabit Ethernet:1000Mbps

9/10. HDMI 1 and DP 1: up to 4K@60Hz (DisplayLink signal channel)

11/12.HDMI 2 and DP 2: up to 4K@60Hz (DP signal channel)

13.PD 3.0: support up to 100W fast charging

14.DC IN 12V3A (36W) power.

Resolution Chart



FAQ

a. Why is there no video output?

1. Please check the connection is good.

2.Please use standard HDMI or DP cable. 3.Please make sure select the correct input source

for your HDMI and DP monitor.

b. Why is there no audio output from HDMI port?

1. Please make sure that there is audio output function on the monitor.

2. Please set the external monitor as default audio output device.

c. Can I connect my Apple SuperDrive to the dock?

1.No, some devices such as the Apple SuperDrive look for Apple-specific signaling and will not work when connected through any USB hub.

d: Why my docking station not charging my laptop?

1. Verify if your system supports PD over USB-C and also identify which port has this functionality if multiple USB-C ports are available.

2.Verify that the system you are using also supports charging via USB-C PD. 3.0 3. Please note that some systems that charge via USB-C or Thunderbolt 3 may not support charging from external products and only support charging directly to the notebook using the original charger or original factory-validated charger.

Driver Download

Windows Driver

MacOS Driver

Ubuntu Driver
