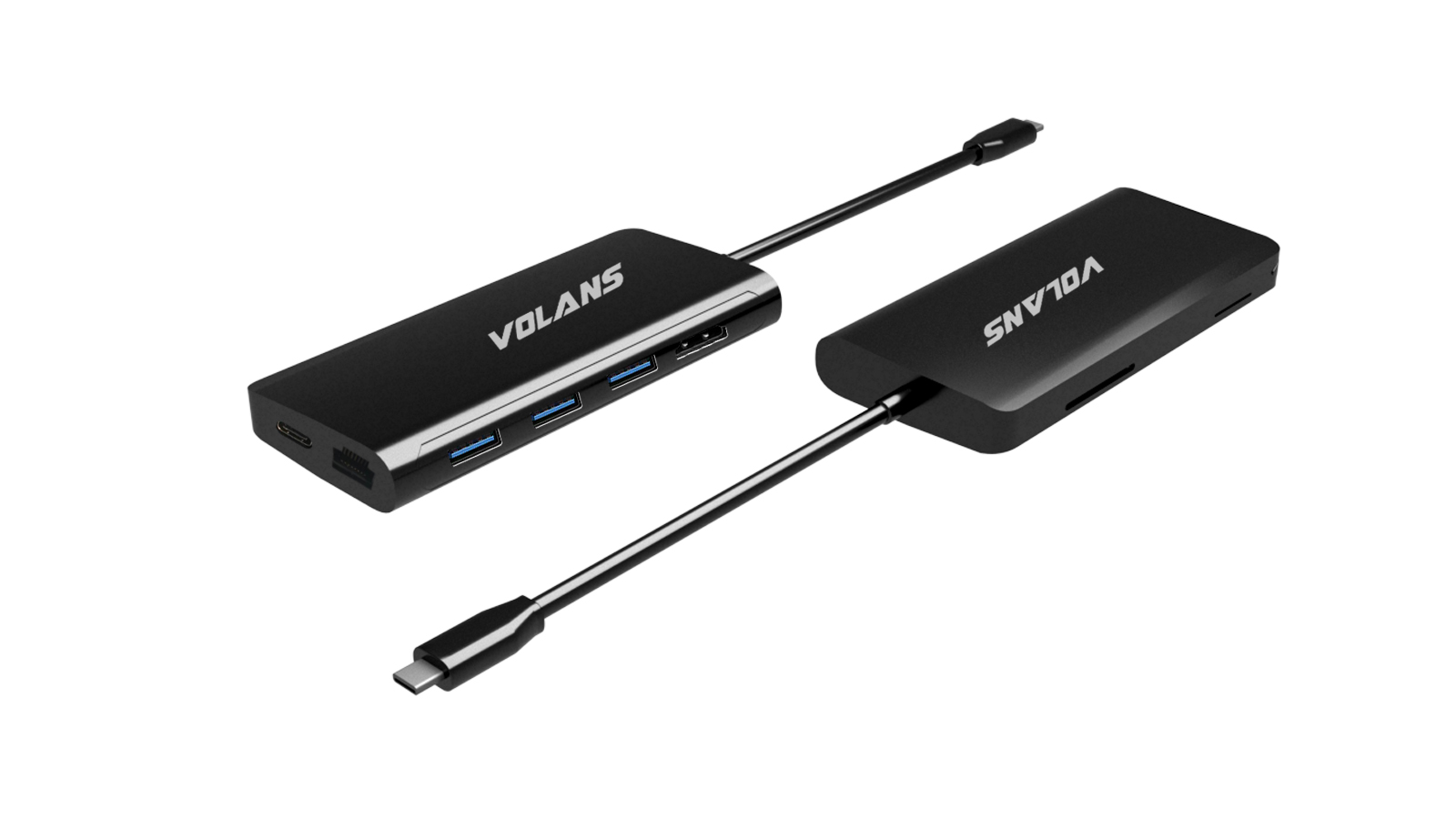

VOLANS VL-UCH3CLR Aluminium 8-in-1 USB-C Hub with 100W PD

  • 1 x HDMI2.0 (4K@60Hz)
  • 3 x USB-A (5Gb/s)
  • 1 x USB-C (PD3.0)
  • 1 x Gigabit RJ45
  • 1 x SD Card Reader
  • 1 x MicroSD Card Reader



SKU: VL-UCH3CLR Category:

Specification

WARRANTY INFORMATION
Warranty 1 Year
HARDWARE
4K Support Yes
Bus Type USB-C
Chipset ID VL102+PS186+RTS8411+RTL8153+FE8.1+GL823K*2
Displays Supported 1
Fast-Charge Port(s) Yes
Industry Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 – Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
Full Duplex Support Yes
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions 4K@60Hz (only DP1.4 can support 4K@60Hz, 4K@30Hz for DP1.2)
Type and Rate USB 3.0 – 5 Gbit/s
UASP Support Yes
CONNECTOR(S)
Connector Type(s) 1 – USB Type-C (24 pin) USB 3.1 Male
1 – HDMI2.0 (19 pin) Female
1 – RJ-45 Female
1 – SD Card Slot (USB2.0)
1 – Micro SD Card Slot (USB2.0)
3 – USB Type-A (9 pin) USB 3.1 Female
1 – USB Type-C (24 pin) USB 3.1 Female
SOFTWARE
OS Compatibility Windows® 7, 8, 8.1, 10
Mac OS® 10.9 to 10.13
Chrome OS™
SPECIAL NOTES / REQUIREMENTS
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode.
The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
POWER
Power Delivery 100W
Power Source USB-Powered
ENVIRONMENTAL
Humidity 0~85% RH (Non-condensing)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
PHYSICAL CHARACTERISTICS
Color Black
Enclosure Type Aluminium
WHAT’S IN THE BOX
Included in Package 1 – VL-UCH3CLR
1 – quick-start guide
