VOLANS VL-UCM2-U4 Aluminium NVMe PCIe M.2 SSD to USB4 Type C Enclosure 40Gbps

This USB4 40Gbps M.2 NVMe enclosure allows you to transform your NVMe M.2 SSD into a super-fast pocket drive which allows you to copy and transfer data in no time. Capable of read and write speeds up to 40Gbps when connected to an USB4 type C Port. Pocket-sized enclosure for PCIe based NVMe SSD is specially designed for mobility, with an ultra-portable design that fits easily into your laptop bag. Enjoy top of the line heat dissipation maximized by the aluminum case and conveniently connect with compatible USB-C hosts.

SKU: VL-UCM2-U4 Category:

Specification

Product Model

VL-UCM2-U4

Product Material

Aluminum

Transfer Rate

USB 4 up to 40Gb/s

IC Chipset

Asmedia ASM2464PD

Interface Type

USB4/Thunderbolt to PCIe Gen4 x4 NVMe

PCI Express Features

Support up to PCI Express Gen4 x4.

Support PCI Express NVMe SSD

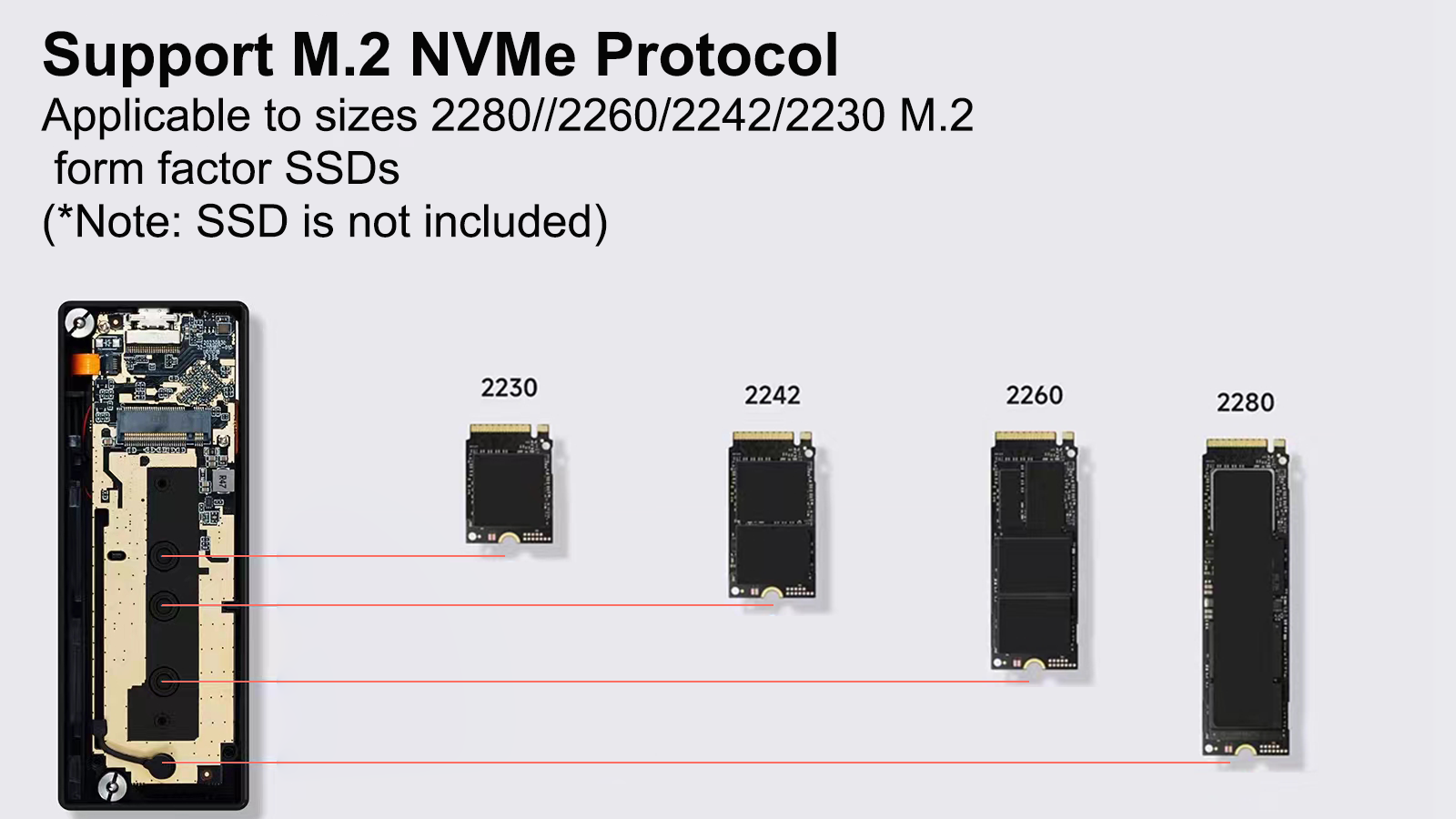

Supported SSD Size

80mm (2280), 60mm (2260), and 42mm (2242) M.2 form factors

Supported Standards

USB4/USB 3.1 Gen 2/USB 3.1 Gen 1/USB 3.0/USB 2.0

Thunderbolt3/4

UASP / Trim Support

Yes

Active Fan

Yes(built-in cooling fan)

Operating Systems Supported

Windows/Mac OS/Linux/Android/iPad OS/iOS

Working status indicator

Sleep state: off for 5 seconds, on for 1 second~~Repeat

USB4/Thunderbolt3/4 status: ice blue light flashing

USB status: green light flashing

Method of insert the SSD

TOOL-FREE, no need any screws with screwdriver

Method of open the cover

Use a Sim-ejector tool(include)

Power Adapter

USB Bus Powered

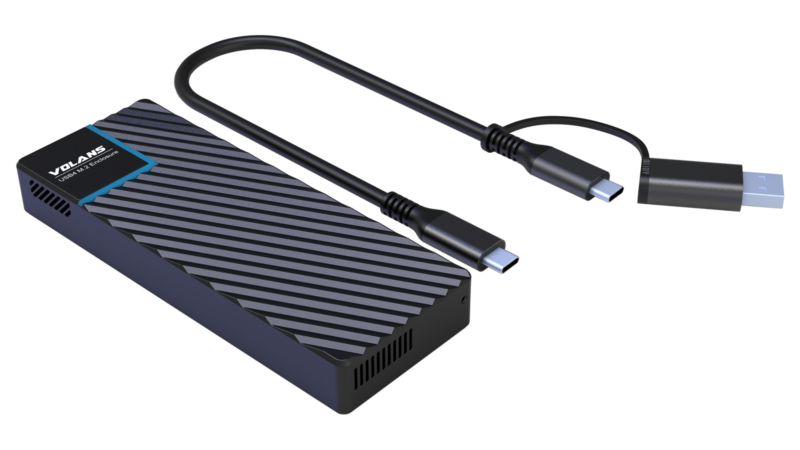

Accessory

1x hybrid USB-C/USB-A to USB-C cable, length 300mm

1x Sim-ejector tool

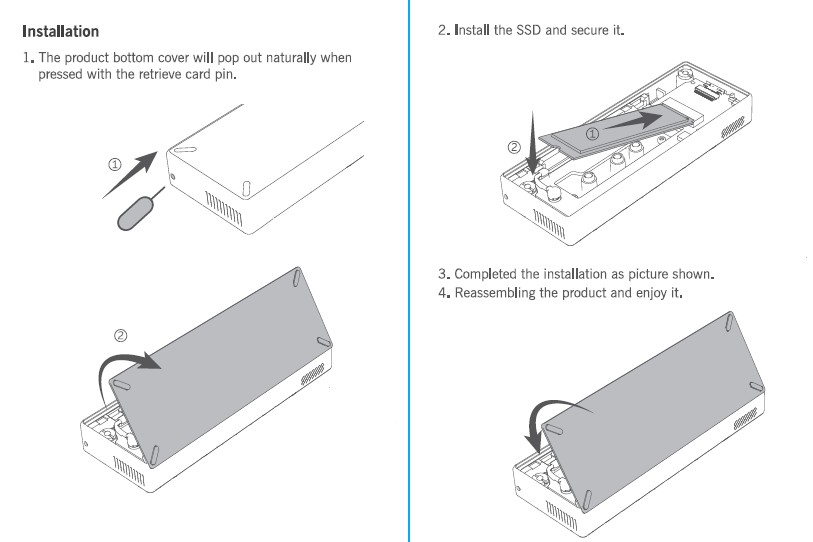

Installation
